SERVING OUR CLIENTS WITH INNOVATION & TRUST
For more than two decades, we have been delivering best-in-class work holding solutions to industries across India and beyond. From our humble beginnings with a single machine to becoming a trusted partner for 400+ national and international brands, our journey reflects precision, consistency, and customer-first values.
We combine 35+ years of technical expertise, modern infrastructure, and a passion for innovation to provide solutions that not only meet but exceed industry standards in performance and reliability.
Brands Who Trust Our Engineering
Stationary Power chuck
We manufacture 2-jaw, 3-jaw, 4-jaw, and 6-jaw built-in type hydraulic/pneumatic power chucks in various diameters such as 135, 165, 210, 250, 315, 400, and 500 mm. These chucks are suitable for machining centres, drilling machines, and other applications, ensuring accurate centring and efficient gripping. Their high gripping precision delivers improved quality and higher efficiency. We also produce close type, thru-bore type, and long-stroke stationary power chucks with customized top tooling.
Eccentric Compensating Power Chuck
We manufacture 3-jaw eccentric compensating power chucks in sizes 250mm and 315mm. These chucks are equipped with a grounded center that ensures precise alignment of the workpiece along the centerline. They are designed to compensate eccentricity of up to 4mm (diametrical), making them highly reliable for accurate machining. Our power chucks are built for stable clamping, improved efficiency, and consistent performance, making them suitable for a wide range of industrial applications.
Hydraulic Power Chuck
We manufacture 2-jaw, 3-jaw, 4-jaw, and 6-jaw hydraulic power chucks in a wide range of diameters including 135, 165, 210, 250, 315, 400, and 500mm. These chucks are suitable for use in both CNC machines as well as conventional lathe machines, ensuring accurate centering, strong gripping, and reliable performance. Designed for versatility and durability, our power chucks are ideal for a variety of machining applications across industries.
Front Operated Power Chuck
We manufacture 2-jaw, 3-jaw, 4-jaw, and 6-jaw front-operated pneumatic chucks in various diameters including 135, 165, 210, 250, 315, 400, and 500mm. These chucks are ideal for indexing, 4th-axis applications, and SPMs where the required RPM is up to 200, ensuring accurate centering and secure gripping. With high gripping precision, they deliver better machining quality and efficiency. We also provide close-type, thru-bore type, and long-stroke stationary power chucks, along with customized top tooling to meet specific requirements. Designed for durability and consistent performance, our pneumatic chucks are a reliable choice for diverse industrial applications.
Rotary Cylinder
We manufacture closed-type hydraulic rotary cylinders in sizes Ø80, Ø120, and Ø160 mm. These cylinders are designed to operate at a maximum speed of 2000 RPM with an operating pressure of 30 kg/cm². Depending on the required draw pull, the appropriate hydraulic cylinder can be selected for optimal performance. Built for reliability, precision, and durability, our hydraulic rotary cylinders ensure smooth operation and consistent clamping in various machining applications.
Turret Sleeves
We manufacture turret blocks as per the required mounting arrangement on the turret, ensuring accurate fit and reliable performance. In addition, we offer turret reduction sleeves with O.D. 40, 32, 25, 20mm and I.D. ranging from 6 to 32mm, which are available ex-stock for quick delivery. Designed for precision, durability, and easy installation, our turret blocks and sleeves provide dependable support for a wide range of tooling applications.
Hard & Soft jaws
We manufacture soft jaws and hard jaws with a variety of serrations such as 1/16 x 90°, 1.5 x 60°, 3 x 60°, and 3/32 x 90°. We also design and manufacture custom-built soft and hard jaws to meet specific application requirements. Our jaws are made for accurate clamping, long service life, and reliable performance, making them suitable for diverse machining operations.
Special Workholdings in Automobile
We design and manufacture special workholding solutions for the automobile industry, tailored to meet the unique requirements of complex components. These workholdings are engineered to ensure high precision, repeatability, and rigidity, enabling efficient machining of parts such as engine components, transmission housings, brake systems, and other critical assemblies.
By providing customized clamping and fixturing systems, our solutions help in reducing cycle time, improving accuracy, and enhancing overall productivity in automotive manufacturing. Built with durability and ease of operation in mind, our special workholdings play a vital role in achieving consistent quality in mass production as well as specialized machining operations.
Special Workholdings: Machining
We offer special workholding solutions for machining applications, designed to handle complex components with precision and reliability. These custom-built fixtures and chucks ensure accurate positioning, firm clamping, and stability during high-speed operations.
By reducing setup time and improving repeatability, our special workholdings help achieve higher productivity, better surface finish, and consistent machining quality. Built with robust materials and tailored to specific requirements, they are ideal for both mass production and specialized machining processes across industries.
Front Operated Chuck
Front Operated Chuck for Clamping Alloy Wheels Developed to achieve fast, precise, and secure clamping of alloy wheel rims during machining. Compact design enhances ease of operation and alignment, ensuring smooth production flow.
Front Clamping Chuck
Special Front Clamping Chuck for Ring Plus Aqua Innovative front clamping design providing quick and easy component changeover, suitable for production environments. Special Dia 200 x 2 Jaw Workholding Engineered for clamping aluminum components with high precision and minimal deformation. Delivers accurate positioning and reliable performance for repetitive operations.

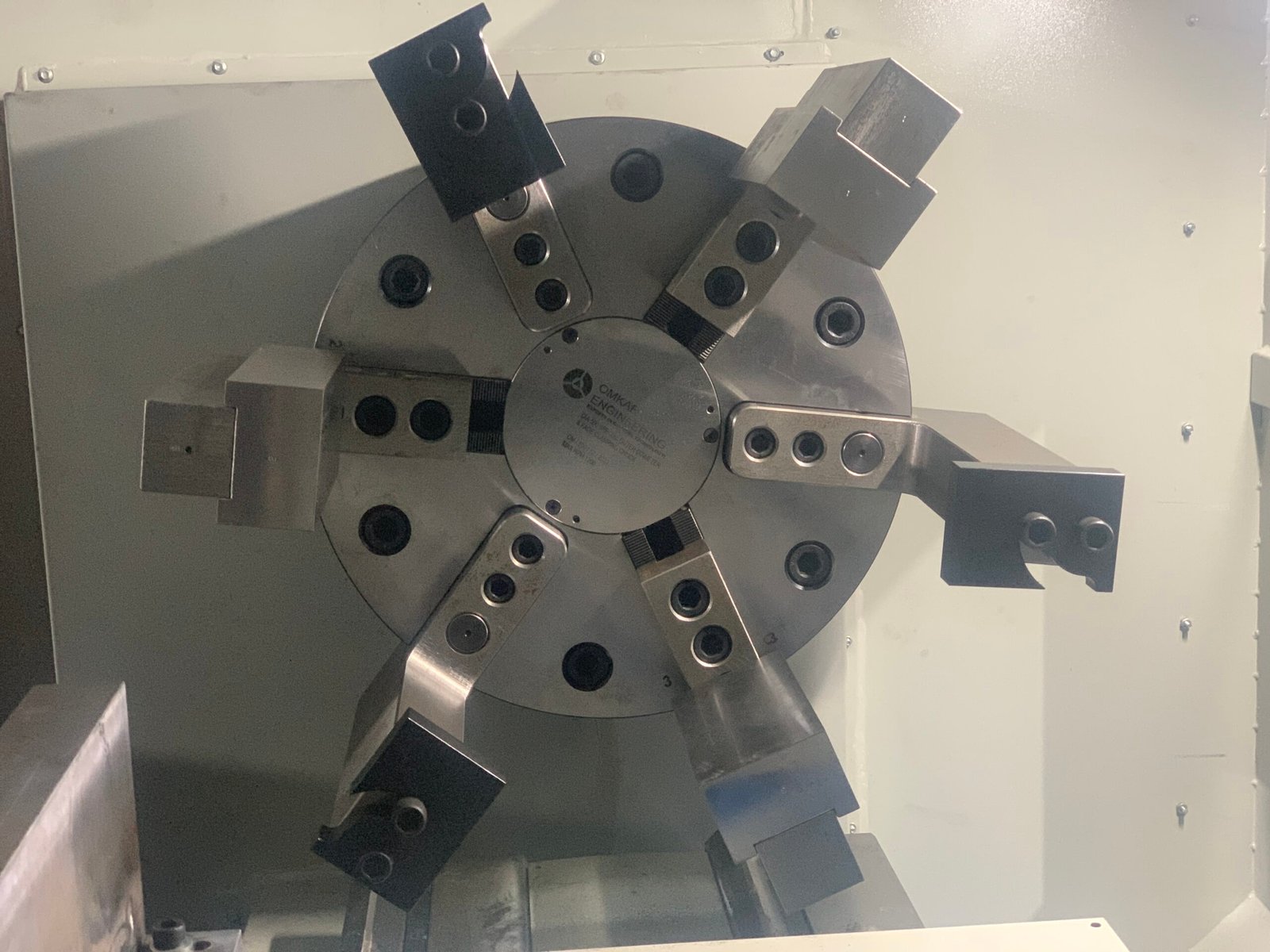

Special Diameter 530mm
Special Diameter 530mm Chuck with 3+3 Independent Jaws Designed for dual clamping — three jaws clamp the outer diameter (O.D.) while the other three handle face clamping. Ideal for multi-part operations, enabling high productivity. The customer successfully machined 14 rings simultaneously, optimizing cycle time and efficiency.

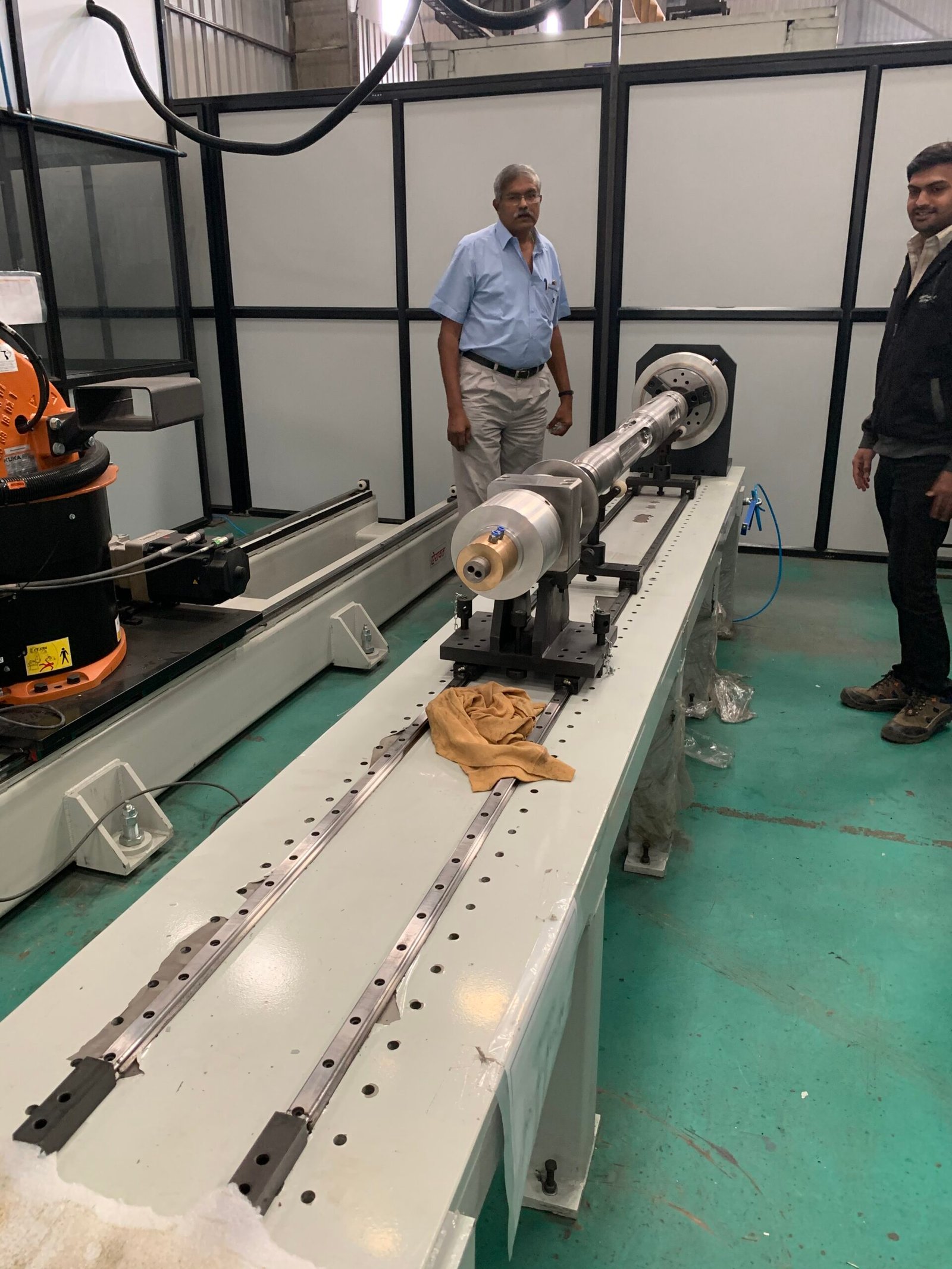

Pneumatic Rotary Cylinder
Special Front Operated Chuck with Pneumatic Rotary Cylinder Custom-built for Laser Cladding at Ultra Precision. Enables accurate rotation and controlled movement during robotic laser cladding processes, improving coating uniformity. Integrated pneumatic rotary system ensures continuous and vibration-free operation for advanced manufacturing lines.

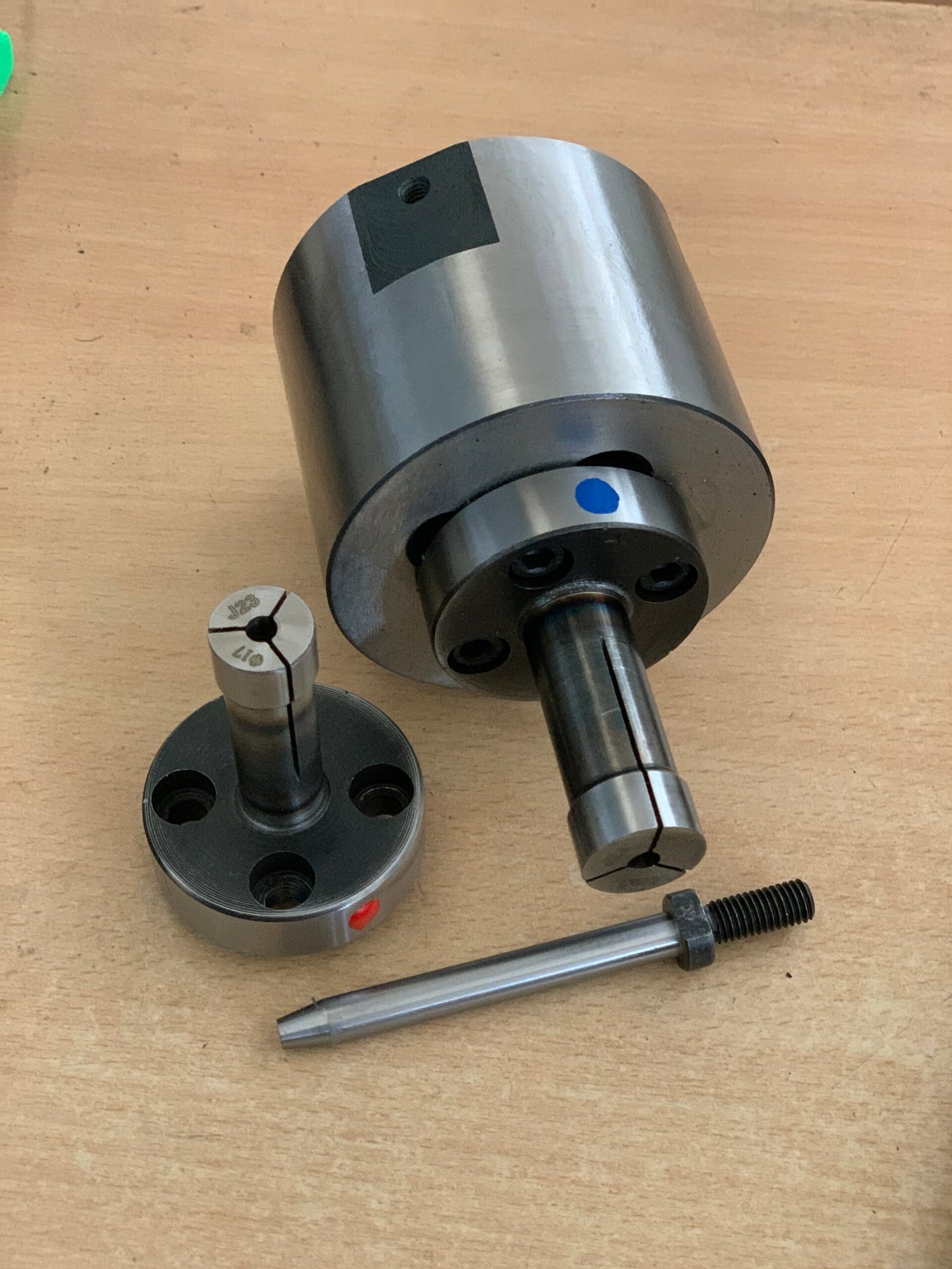

Work Holding for Grindmaster
Special Collet Work Holding for Grindmaster Compact collet-based holding system designed for high-speed grinding applications. Offers superior concentricity, quick changeover, and consistent accuracy for mass production.
Laser Welding Work Holding for Gabriel
Special Laser Welding Work Holding for Gabriel Purpose-built fixture for precision laser welding operations. Provides firm positioning, reduced setup time, and high repeatability under production conditions.

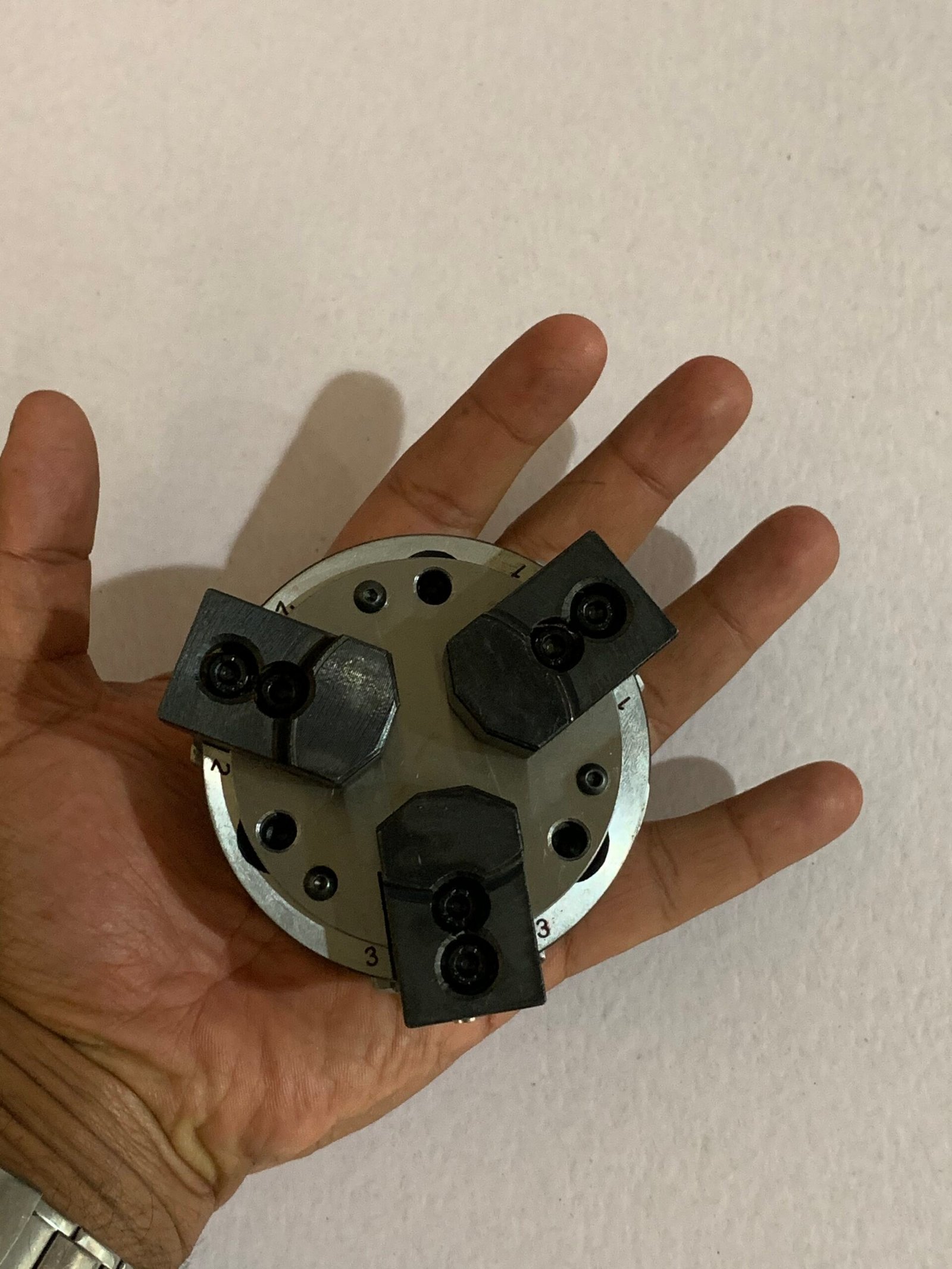

Small Diameter Power Chucks
Design and Development of Dia 75mm x 3 Jaw Power Chuck Developed for compact precision applications where small components demand high accuracy and repeatability. Includes: Chuck Body Base Jaw Cover Plate Soft Jaws Cam Back Plate Ideal for small automotive parts and testing applications where rigidity and balance are crucial.
Special Dia 250 x 2 Jaw
Special Dia 250 x 2 Jaw Work Holding Developed for Sauer Danfoss — designed to hold complex casted parts securely for machining accuracy. Provides rigid support and smooth operation during precision milling or turning. Special Work Holding for Kirloskar Brothers Ltd. Custom fixture solution tailored to specific part geometry, ensuring high repeatability and quick loading cycles.
Special Manual Chucks
500 x 12 Jaw Hand Operated Chuck
Designed for precision and heavy-duty applications in the automobile sector.
Ideal for large-diameter components requiring secure clamping with even load distribution.
Client: Raychem RPG Pvt. Ltd.

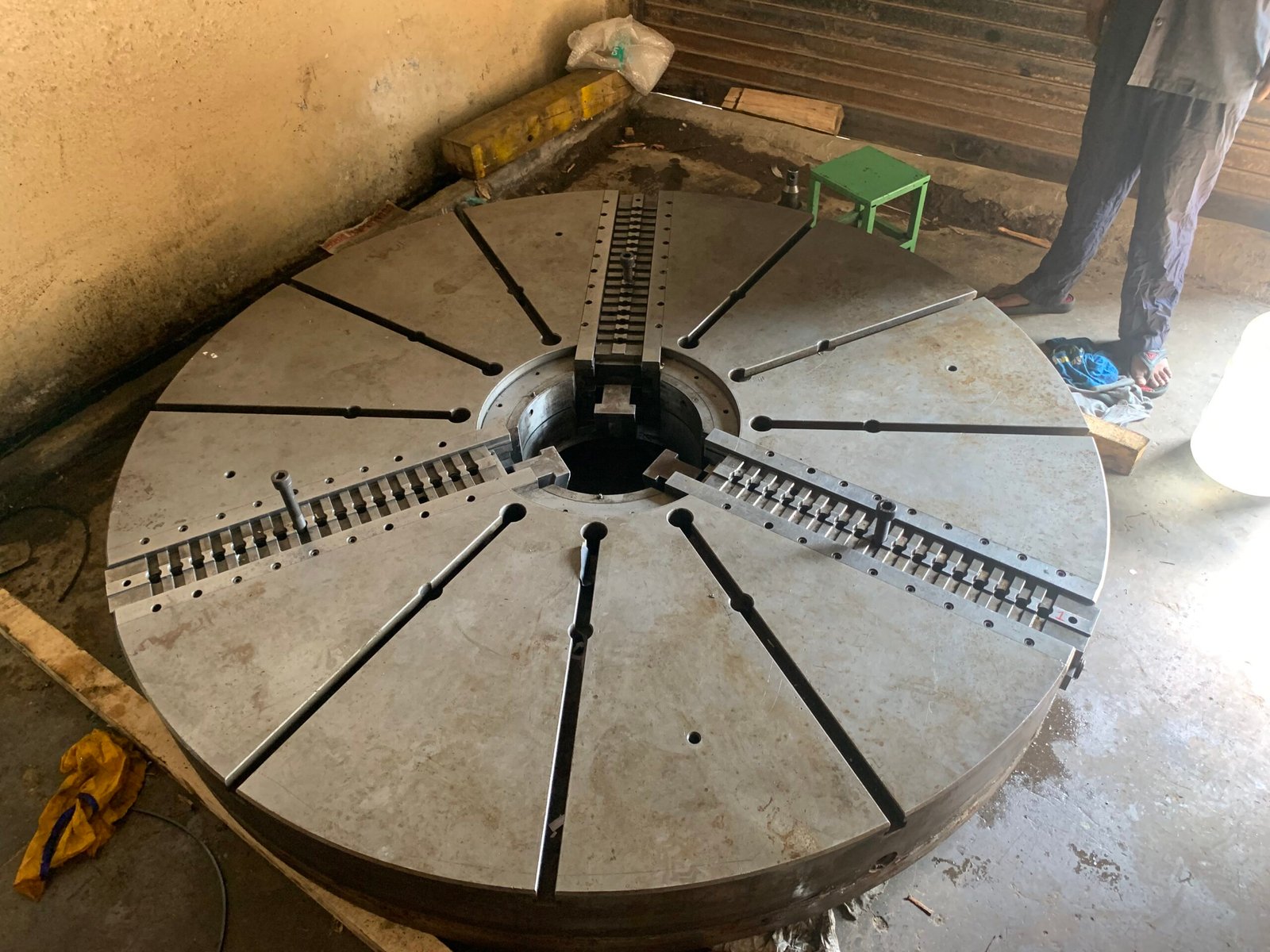

Reconditioning of 1500mm x 3 Jaw Chuck
Completely overhauled and precision-ground for extended service life and higher accuracy.
Ensures smooth operation and consistent clamping performance after refurbishment.
Client: Ghadge Patil, Kolhapur.
200 x 3 Jaw Front Operated
200 x 3 Jaw Front Operated Pneumatic Chuck for SPM Custom-designed chuck engineered for Special Purpose Machines. Provides efficient front operation, high repeatability, and strong clamping force suitable for precision machining applications. Built for durability and minimal maintenance during continuous production cycles.
315 x 3 Jaw Built-in Stationary Chuck
315 x 3 Jaw Built-in Stationary Chuck for Rathi Transpower Heavy-duty stationary chuck designed for stable work holding during high-torque operations. Ensures maximum rigidity and precision for industrial power transmission components. Ideal for long-term reliability and high-performance machining environments.
Thrust Rig Turning Fixture for GE India
Developed for precision turning of thrust rigs used in turbine and industrial assemblies. Ensures accurate concentricity and minimal vibration at high spindle speeds. Engineered for maximum repeatability in production operations. End Cover Turning Fixture for GE India Precision work holding solution for turning end covers with complex geometries. Provides strong axial holding and precise alignment for improved machining accuracy. Built for repeat cycles with consistent quality output.
ARI Armaturen
Special Work Holding for ARI Armaturen High-precision fixture engineered for machining valve components. Features modular clamping arrangement for rapid setup and stable operation. Ensures accurate alignment, minimal distortion, and improved cycle time efficiency.
Dowel Pressing Work Holding
Special Dowel Pressing Work Holding for Bharat Forge Crankshaft Dedicated fixture designed for precise pressing of dowel pins in crankshaft assemblies. Ensures perfect alignment, high repeatability, and superior part integrity. Optimized for heavy-duty usage in high-volume production environments.
MAZAK RAMTECH V12 Dia 1850 Chuck
Special Fixture for MAZAK RAMTECH V12 Dia 1850 Chuck Designed for handling and machining heavy components up to 1000 kg. Provides robust stability and precision under high cutting loads. Client: Gardner Denver Nash. Special Fixture for MAZAK INTEGREX Dia 1000 Chuck Tailored for machining large components weighing up to 600 kg. Engineered for superior holding strength and alignment accuracy. Client: Shirodkar Precicomp.
Extra Long Stroke Dia 400 x 3 Jaw
Special Extra Long Stroke Dia 400 x 3 Jaw Chuck for Kranti Industries Designed for components requiring deep clamping and extended jaw movement. Ensures reliable grip with uniform pressure distribution, suitable for heavy machining loads. Provides improved accessibility for machining complex part profiles.
Turning Fixture for Atlas Copco Cylinder
Special Turning Fixture for Atlas Copco Cylinder Developed for precision turning of large cylindrical components. MAZAK M/C Fixture weight: 456 kg Machined Component weight: 378 kg Ensures tight tolerance machining with high repeatability and robust structure for demanding production environments.
CUMMINS Genset, Ranjangaon
Special Work Holding for CUMMINS Genset, Ranjangaon Customized fixture designed for machining large cylindrical housings for power generation systems. Provides secure grip and perfect alignment to ensure high machining precision and reduced cycle time. VTL Box Assembly for 500 Ton Workpiece Holding (GODREJ) Heavy-duty vertical lathe fixture for clamping and machining massive industrial components. Built for structural stability, long life, and precise handling of extremely heavy parts.
